Wooden bridge (1/72 scale)
The "Surprise at Kosen" SDS scenario is based around a wooden bridge in the extreme flank of the Austrian defensive line. All my miniature bridges were built for Napoleon's Battles, so they are undersized when used for 1:1 skirmish games (in the same way that my houses and trees). Therefore, a new bridge was mandatory, and this page describes some of the basic steps of its building.

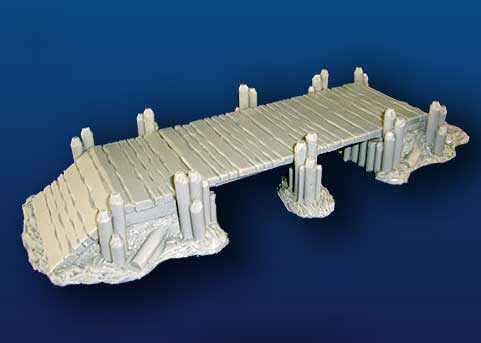

| 1 | This was the inspiration (Acheson Creations) |
 |
| 2 | A view of the materials: 2mm cardboard, water-based paints, white glue, wooden matchsticks and wall-scratch paste |
 |

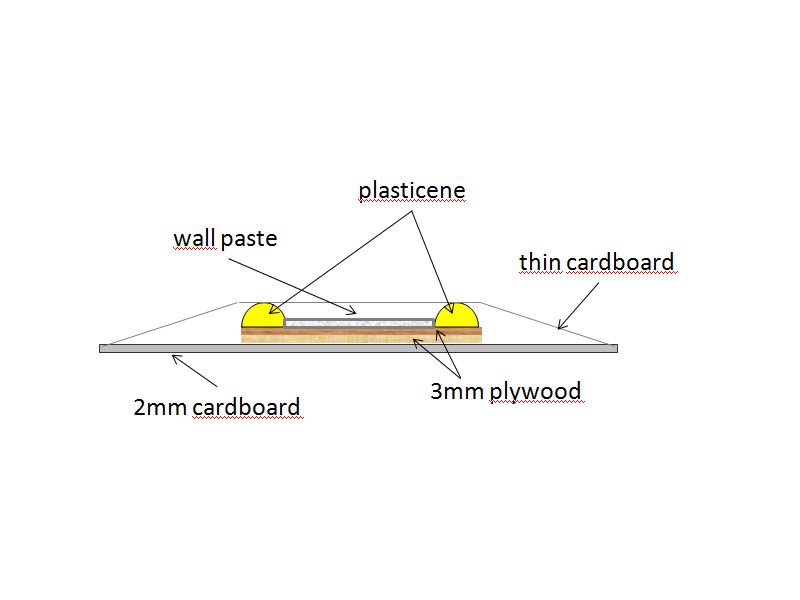

| 3 | The scheme is drawn with Powerpoint |
 |

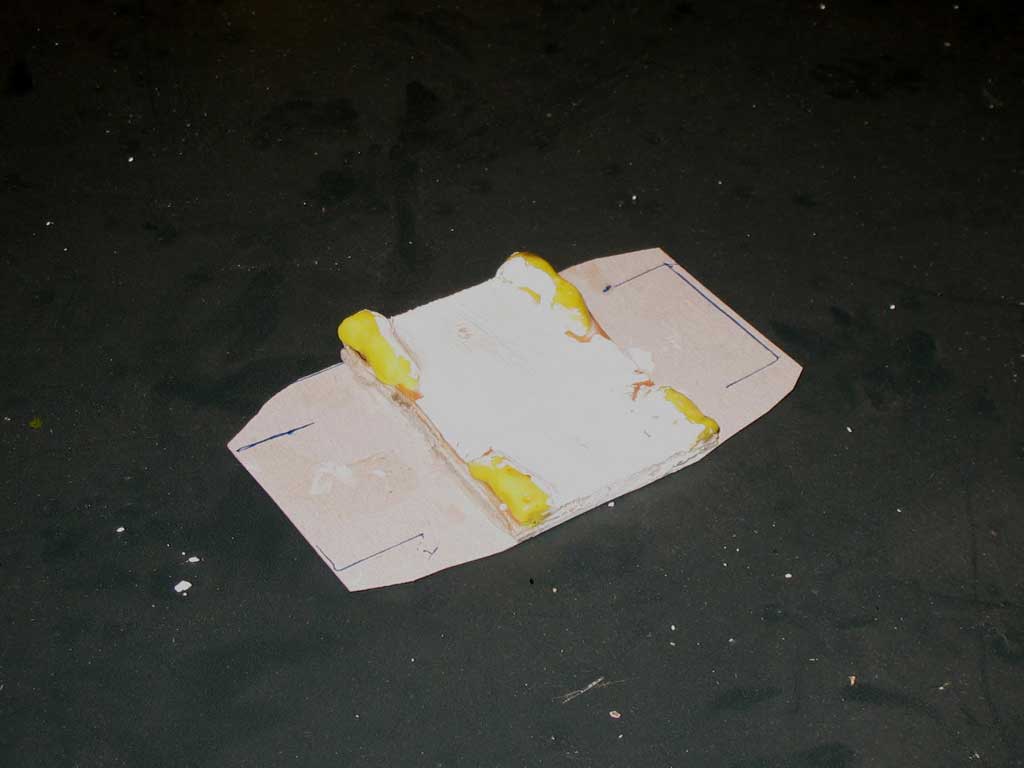

| 4 | The bridge under construction |
 |
| 5 | A river section to see the painting job |
 |

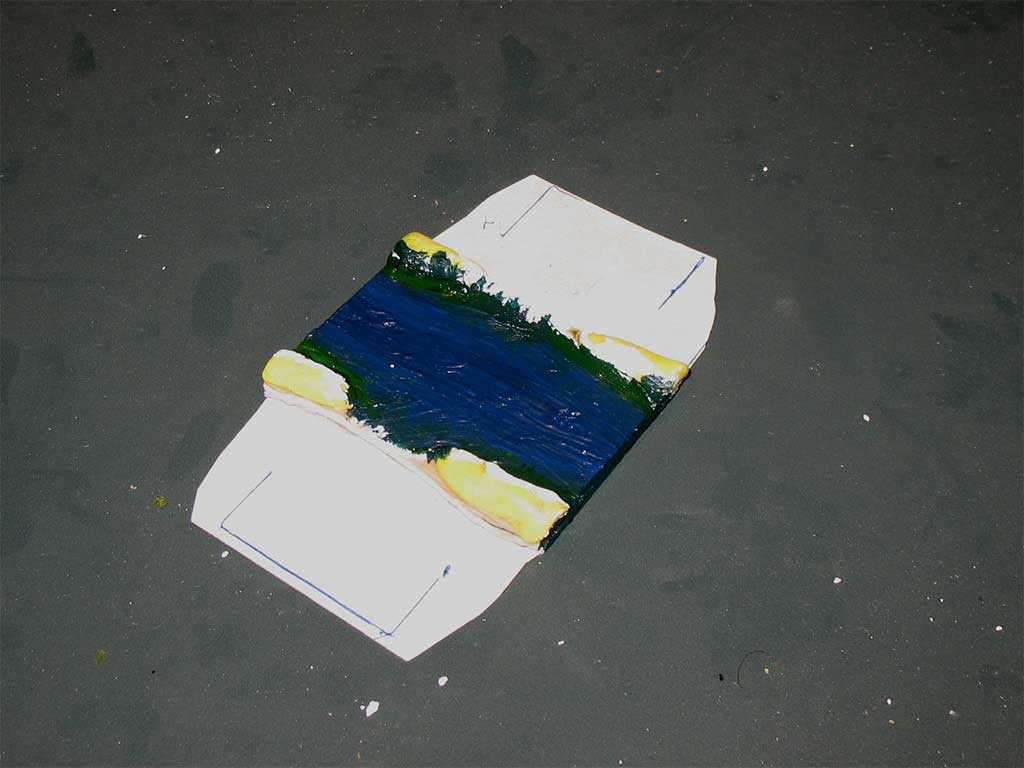

| 6 | The river bottom is painted |
 |

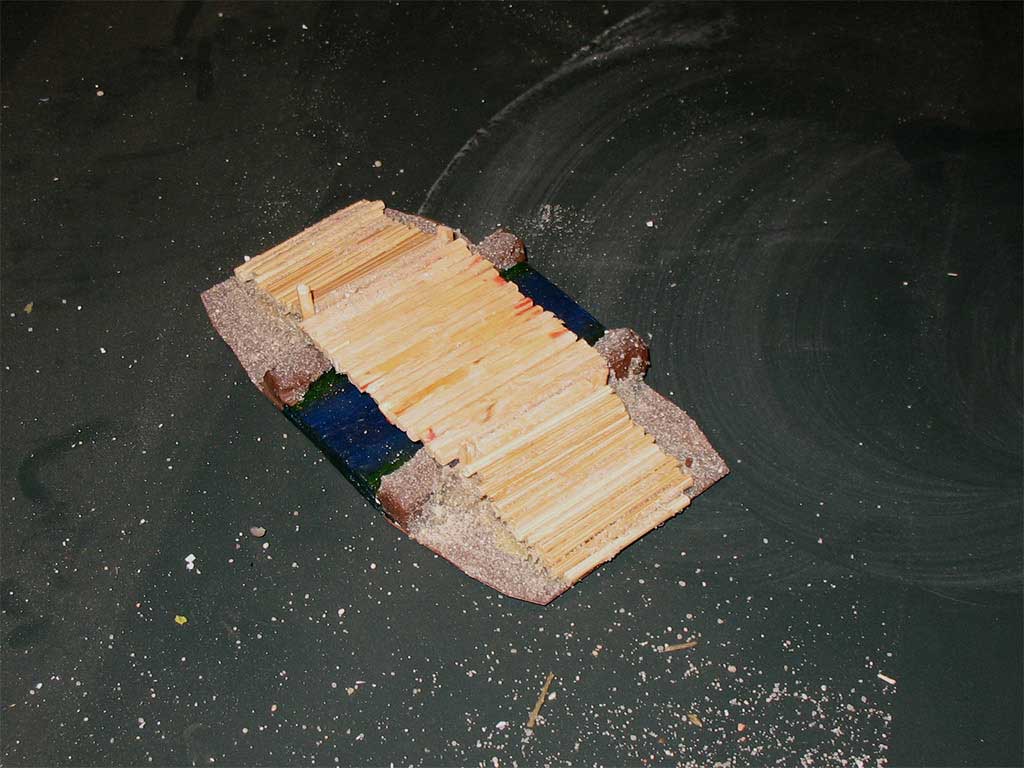

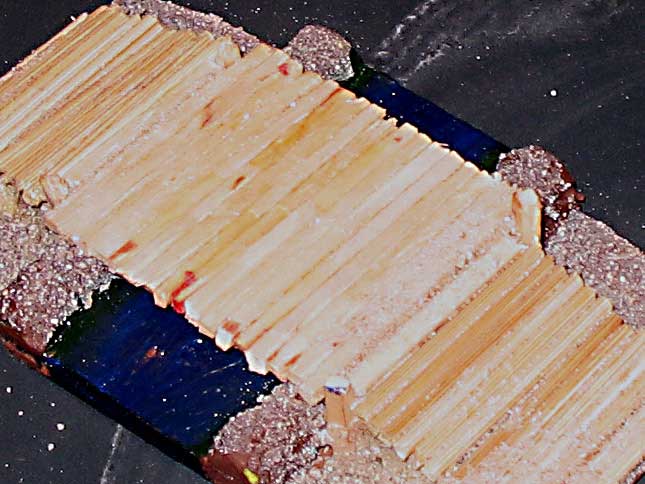

| 7 | Square matchsticks and rounded wooden brochettes (kewers) were cut at the adequate size and glued onto the cardboard. |
 |

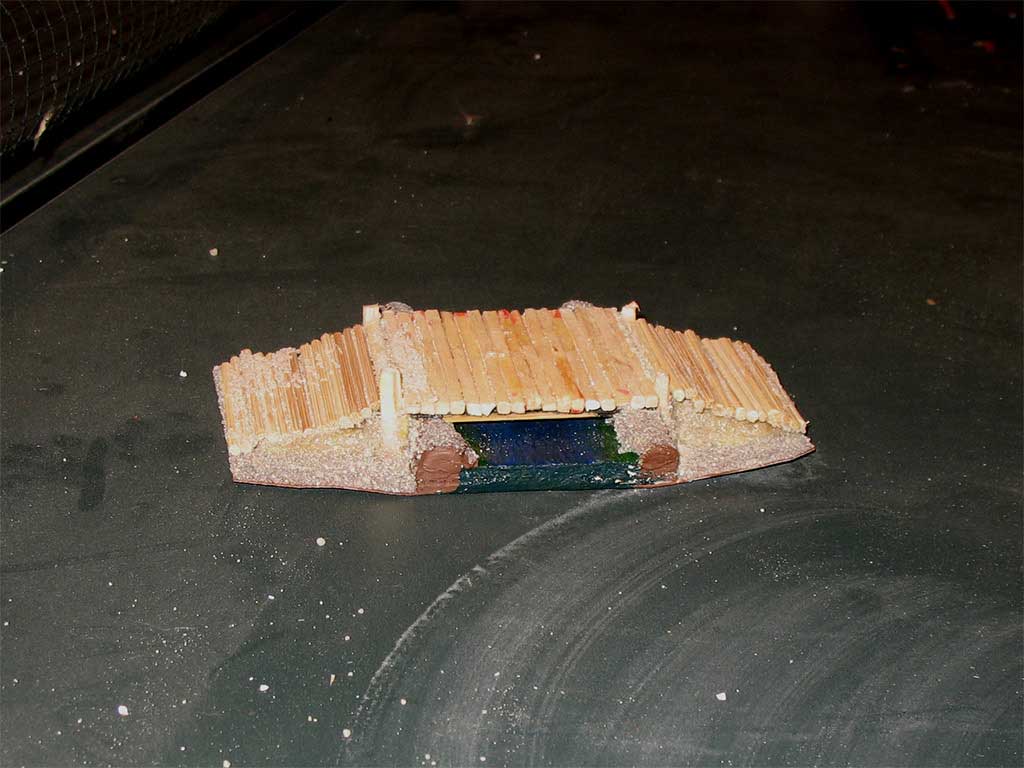

| 8 | The final bridge before the application of grass |
 |
>
